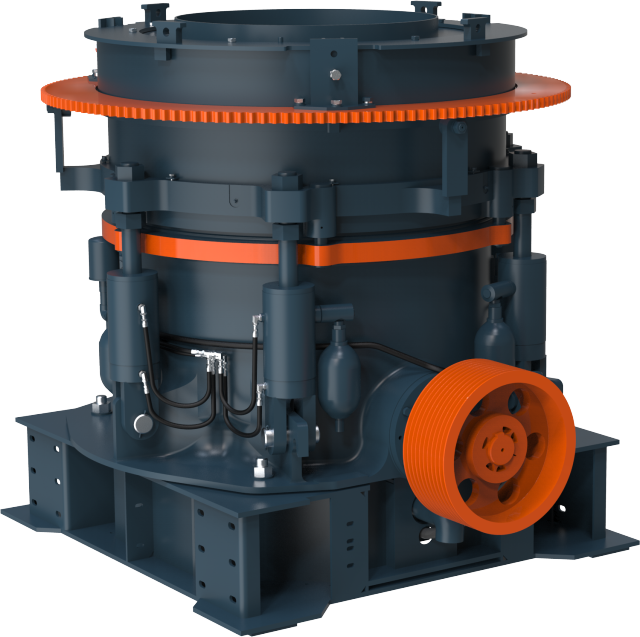

The PHP series cone crusher is a high-performance secondary or tertiary crushing equipment, specially designed for industries such as mining, metallurgy, construction, and water conservancy and hydropower, for efficient crushing of various ores and rocks.
Applicable Materials(Hard and medium-hard rocks):
basalt, granite, marble, gneiss, quartzite, sandstone, limestone, iron ore, copper ore, molybdenum ore, etc.
Technical Parameters:
Capacity: 45-1200 t/h
Feed Size: 14-353 mm
Power: 90-630 kW
|
|
PHP3 |
PHP4 |
PHP5 |
PHP6 |
PHP100 |
PHP200 |
PHP300 |
PHP400 |
PHP500 |
|
Technical specifications |
|||||||||
|
Head diameter |
1 000 mm |
1 120 mm |
1 250 mm |
1 400 mm |
735 mm |
940 mm |
1 120 mm |
1 320 mm |
1 520 mm |
|
Power |
250 kW |
315 kW |
370 kW |
500 kW |
90 kW |
132 kW |
220 kW |
315 kW |
355 kW |
|
Crusher weight *) |
16 100 kg |
24 200 kg |
29 000 kg |
44 550 kg |
6 470 kg |
12 160 kg |
18 100 kg |
25 600 kg |
37 000 kg |
|
Feed openin |
|||||||||
|
Maximum |
220 mm |
252 mm |
317 mm |
331 mm |
150 mm |
185 mm |
241 mm |
304 mm |
351 mm |
|
Capacity |
|||||||||
|
Closed side setting |
Capacity |
||||||||
|
6 mm |
|
|
|
|
45 - 55 |
|
|
|
|
|
8 mm |
94 - 122 |
135 - 175 |
158 - 205 |
|
50 - 60 |
|
|
|
|
|
10 mm |
108 - 147 |
155 - 210 |
181 - 246 |
220 - 300 |
55 - 70 |
90 - 120 |
115 - 140 |
140 - 175 |
175 - 220 |
|
13 mm |
136 - 185 |
195 - 265 |
229 - 311 |
280 - 380 |
60 - 80 |
120 - 150 |
150 - 185 |
185 - 230 |
230 - 290 |
|
16 mm |
164 - 220 |
235 - 315 |
275 - 369 |
335 - 450 |
70 - 90 |
140 - 180 |
180 - 220 |
225 - 280 |
280 - 350 |
|
19 mm |
182 - 241 |
260 - 345 |
304 - 403 |
370 - 490 |
75 - 95 |
150 - 190 |
200 - 240 |
255 - 320 |
320 - 400 |
|
22 mm |
199 - 262 |
285 - 375 |
335 - 439 |
410 - 535 |
80 - 100 |
160 - 200 |
220 - 260 |
275 - 345 |
345 - 430 |
|
25 mm |
210 - 279 |
300 - 400 |
352 - 460 |
430 - 570 |
85 - 110 |
170 - 220 |
230 - 280 |
295 - 370 |
365 - 455 |
|
32 mm |
217 - 307 |
310 - 440 |
380 - 500 |
440 - 630 |
110 - 155 |
190 - 235 |
250 - 320 |
325 - 430 |
405 - 535 |
|
38 mm |
251 - 349 |
360 - 500 |
422 - 550 |
515 - 715 |
|
210 - 250 |
300 - 380 |
360 - 490 |
445 - 605 |
|
45 mm |
279 - 388 |
400 - 555 |
468 - 600 |
570 - 790 |
|
|
350 - 440 |
410 - 560 |
510 - 700 |
|
51 mm |
|
|
|
|
|
|
|
465 - 630 |
580 - 790 |
