PHG Series

When designing the new tank unit we have listened to our customers . Based on their feedback we have made several improvements.

With a focus on easier access during service and better ergonomics.

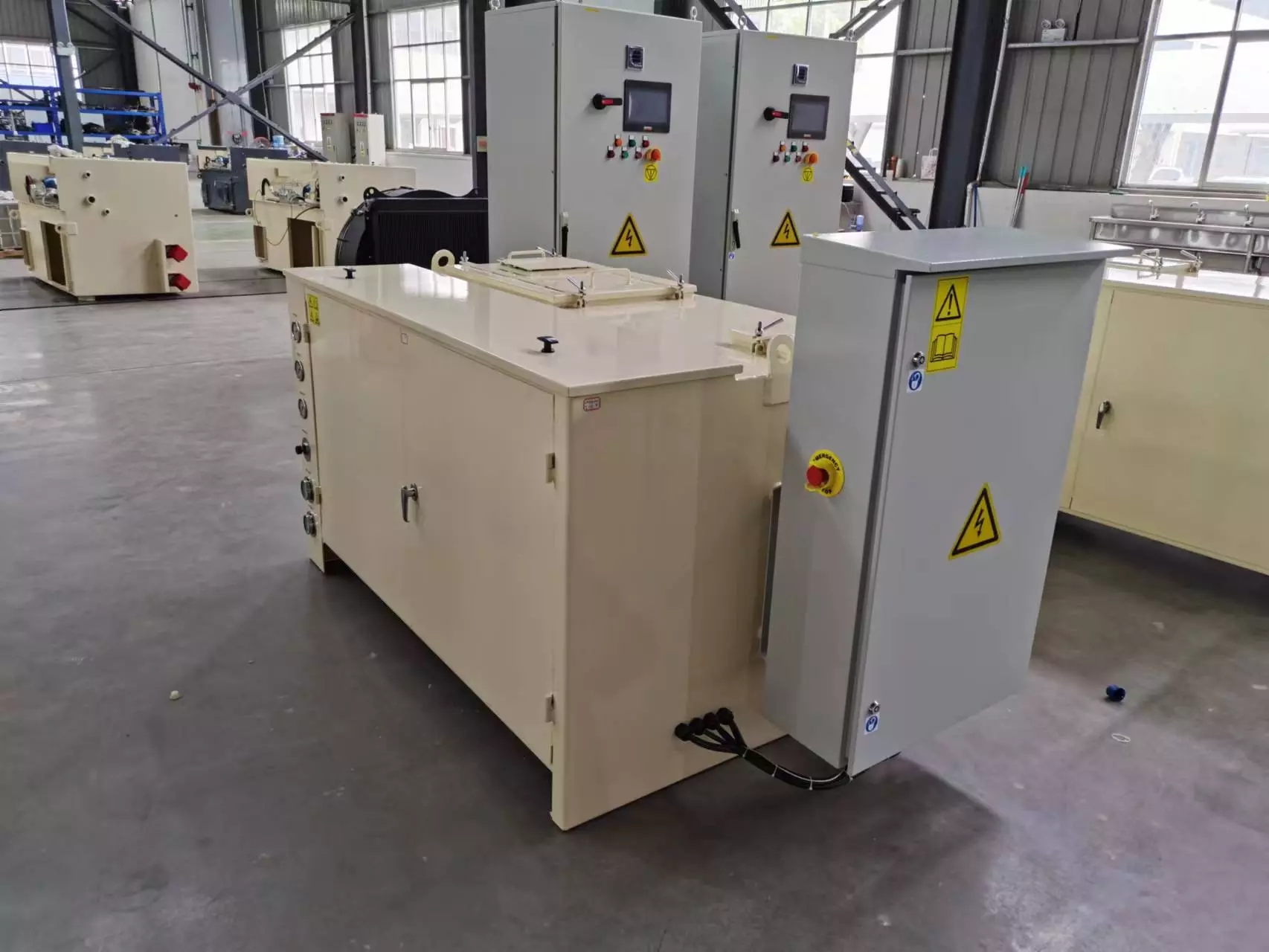

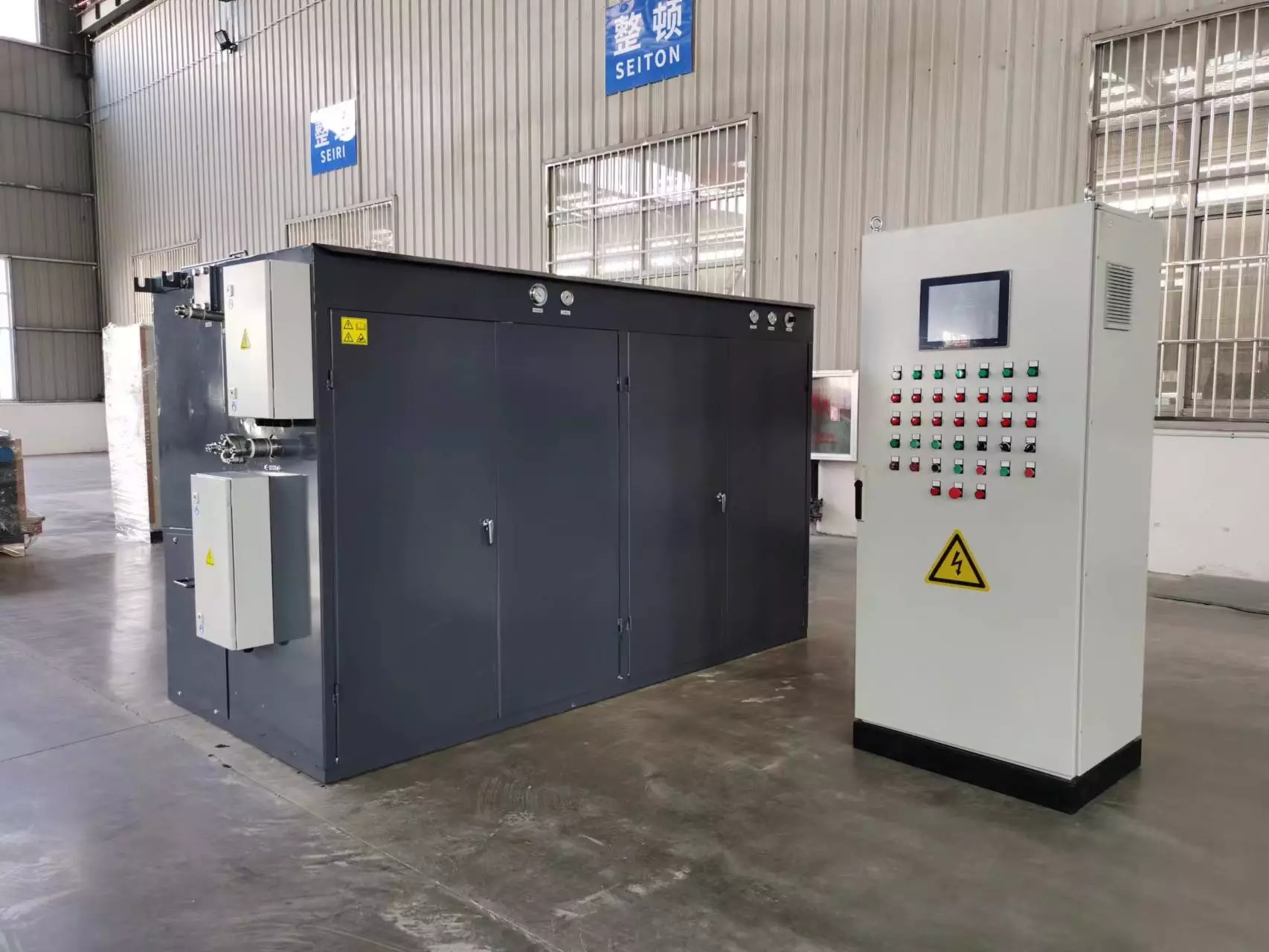

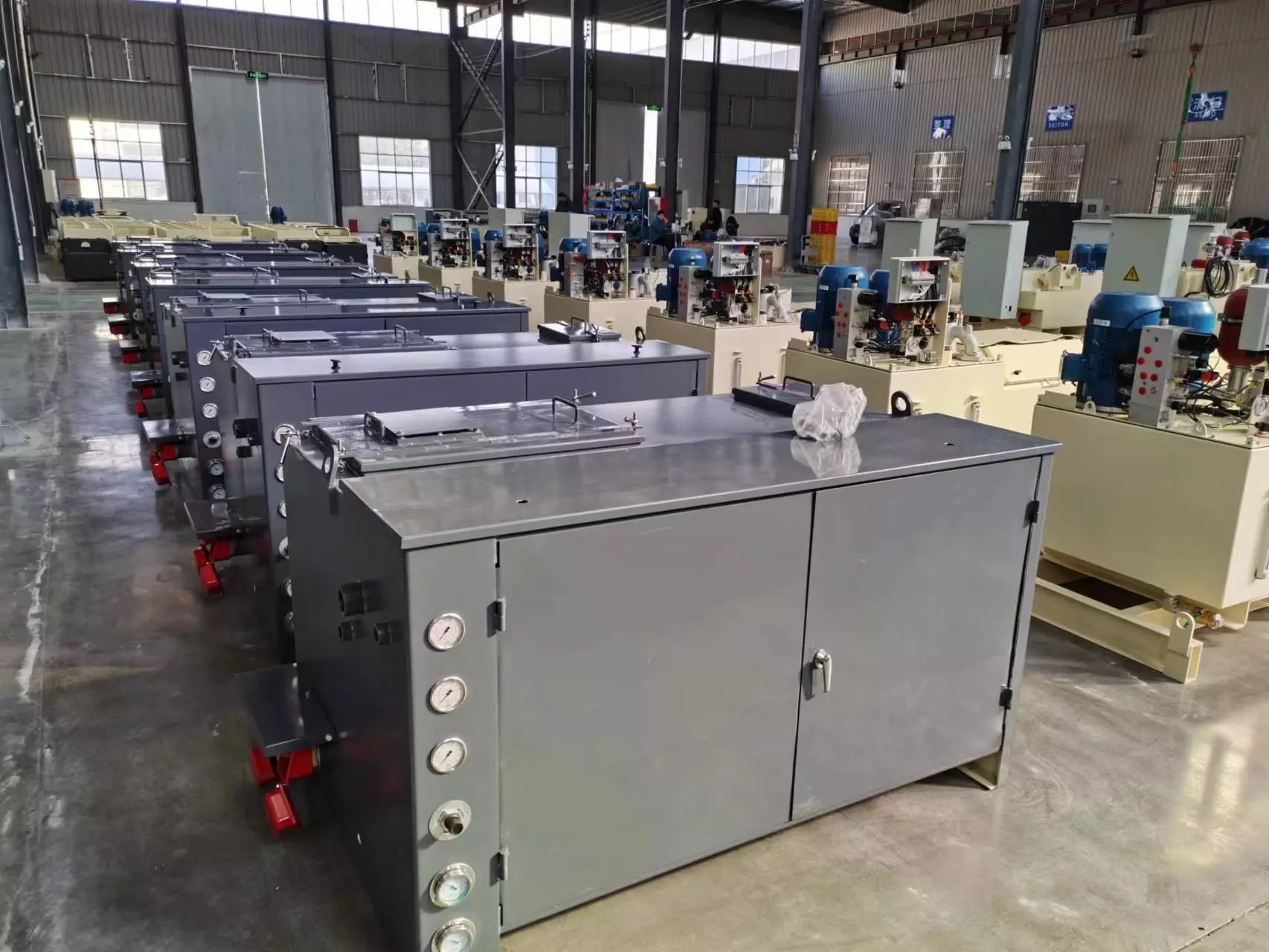

As you can see , all the various components in the tank unit are easily accessed and the new unit will be placed on a frame.

Allowing an optimal working height.

There are no connections on the right side of the tank, which means less installation space is required and it is now possible to place the tank unit next to a wall

The frame is fitted with an oil tray that will catch any oil spills

The top hatch can be opened and the top bar easily removed for easier access with lifting devices.

The inspection hatch for the lubrication tank has been fitted with a see-through window , which will make it possible to inspect the oil siv without actually opening the hatch.

Since the air overpressure in the crusher no longer is connected to the tank, it has been fitted with an air fitter to be able to handle the changes in the oil levels.

A level switch on the hydroset tank and the lubrication tank will warm the user when the oil levels are too low.

The pinion lubrication pump has been replaced by a constant flow valve , which diverges a small part of the main lubrication oil flow to the pinion housing .

A flow switch has also been added to indicate a constant oil flow.

A pressure sensor together with a visual indicator shows the user when it is time to change the filter elements.

Altogether the design and features of the new tank unit is the result of a close cooperation between Pascal and our customers.




Parameters:

Features and Advantages

• Less installation space

• Reduces pressure peaks and mechanical stress on the crusher

• Provides safety and setting adjustment functions

• Easier access with lifting devices

Range of replacement crusher hydraulic and electric systems:

Cone Crusher

·  G Range – G49 | G58 | G108 | G138 | G158 | G208 | G258 | G411 | G811 | G1211 | G1811 | G2011 | G2211 | G2511 | G3511 | G412 | G612 | G1012 | G1812 | G2612 | G3812 | G3514 | G4214 | G415 | G815 | G1315 | G2215 | G3815 | G5015

· GP® Range – GP7 | GP11F | GP11M | GP100S | GP100 | GP200S | GP200 | GP220 | GP300S | GP300 | GP330 | GP500 | GP500S | GP550 | GP550S |

· HP®- HP100 | HP200  | HP300  | HP400 | HP500 | HP700 | HP800 | HP3 | HP4 | HP5 | HP6

· MP® -MP800  | MP1000 | MP1250 | MP2500

· MX®-MX3 |MX4/MX5

· Omnicone - Omnicone 1560 | Omnicone1352 | Omnicone 1144 | Omnicone 937

Telsmith Cone Crusher

· Gyrasphere® – 24″ | 36″ | 38″ | 44″ | 48″ | 52″ | 66″

Sandvik Cone Crusher

· CH® Series -CH430 | CH420 | QH330 | CH660 | CH880 | CH780 | CH540/CH550 | CH870 | CH880 | CH890 | CH895

· Hydrocone® 1800 Series -H2800 | H3800 | H4800 | H6800 | H8800 | H7800

· Hydrocone® 1000 Series -H2000 | H3000 | H4000 | H6000 | H7000 | H8000

· Superior® CS Series – CS420 | CS430 | CS660 | CS440 | CS660

· Superior® 1800 Series – S2800 | S3800 | S4800 | S6800

· Superior® 1000 Series – S2000 | S3000 | S4000 | S6000

· Svedala® H Series- H22 H36 H45 H51 H200 H1000/H1800 H2000/H2800 H3000/H3800 H4000/H4800

· UH 320 RC 3800; UH 421 RM 4800; UH 440i CM 4800i; US 440i CMS 4800i; UH 640 CM 6800

Allis Chalmers Cone Crusher / Svedala Cone Crusher; Cedarapids Cone Crusher / El-Jay Cone Crusher; Clemro Cone Crusher; JCI Cone Crusher; Kue-Ken Cone Crusher;  Cone Crusher / Nordberg Cone Crusher / Symons Cone Crusher; Minyu Cone Crusher; Parker Cone Crusher; Pegson Cone Crusher; Pioneer Cone Crusher; Sandvik Cone Crusher; Telsmith Cone Crusher; Traylor Cone Crusher; Miscellaneous Cone Crusher;

Gyratory Crusher

· Gyratory Series – 42-65  | 50-65 | 54-75 | 62-75 | 60-89 | 60-110

· Allis Chalmers/Svedala Gyratory Series – 42X65  | 50X65 | 54X75 | 62X75 | 60X89 | 60X110 | 1650 | 1560

· SANDVIK Gyratory Series- CG850i | CG830i  | CG820i | CG810i

· FLSMIDTH Gyratory Series-43’’X69’’ | 51’’X69’’ | 54’’X77’’ | 63’’X79’’ |60’’X89’’ |60’’X119’’

· Fuller-Traylor Gyratory Series-42-70 | 54X74 |

· ThyssenKrupp Gyratory Series - KB 54-67; BK 54-67; KB 54-75; BK 63-75; KB 63-75; KB 63-89; KB 63-114; KB 63-130

· ……

Jaw Crusher

·  C Series® – C63 | C80 | C95 | C96 | C100 | C105 | C106 | C110  | C116 | C120 | C125 | C130 | C140 | C145 | C150 | C160 | C200 | C3054  | VB806 | VB13-11

·  Mobile Crusher LT® Range -LT80 | LT95 | LT96 | LT100 | LT105 | LT106 | LT110 | LT116 | LT120 | LT125  | LT130| LT140  | LT150 | LT145 | LT160 | LT200

·  VB Series- VB806 | VB13-11

Telsmith Jaw Crusher

· B, C and D’Style – 36×6 | 10×21 | 10×36 | 14×24 | 15×24 | 18×32 | 20×36 | 25×36 | 25×40 | 30×42 | 36×46 | 42×48 | 44×48 | 50×60 | 60×48

· Hydra-Jaw® H2238 Jaw Crushers |  Hydra-Jaw® H2550 Jaw Crushers |  Hydra-Jaw® H3244 Jaw Crushers |  Hydra-Jaw® H3450 Jaw Crushers  | 3258 Hydraulic Jaw Crushers  | 3858 Hydraulic Jaw Crushers |  Iron Giant™ Iron Giant™ Series Jaw Crushers |  3042, 3055, 3648. Models 3042, 3055, 3648 Jaw Crushers

Sandvik Jaw Crusher

· JM® Series – JM806 | JM907 | JM1107 | JM1108 | JM1208 | JM1211 | JM1312 | JM1511 | JM1513

· CJ® Series –CJ211 | CJ409 |  CJ411 | CJ412 | CJ612 | CJ613 | CJ615 | CJ815

· UJ® Series – UJ310 | UJ440i | UJ440E | UJ540 | UJ640

· CM Range – CM1208i | CM1208F | CM1211 | CM1511

· Other Range – QJ330,QJ331, QJ 240 Extec C10+; QJ 330 Fintec F 1107; QJ 340 Extec C12+
